MACHINE PORTFOLIO

Find your next
production advantage.

Explore CNC turning and milling platforms. Search a model, compare its specifications and build a shortlist for your application.

21 machines

Compare selected machines ↗

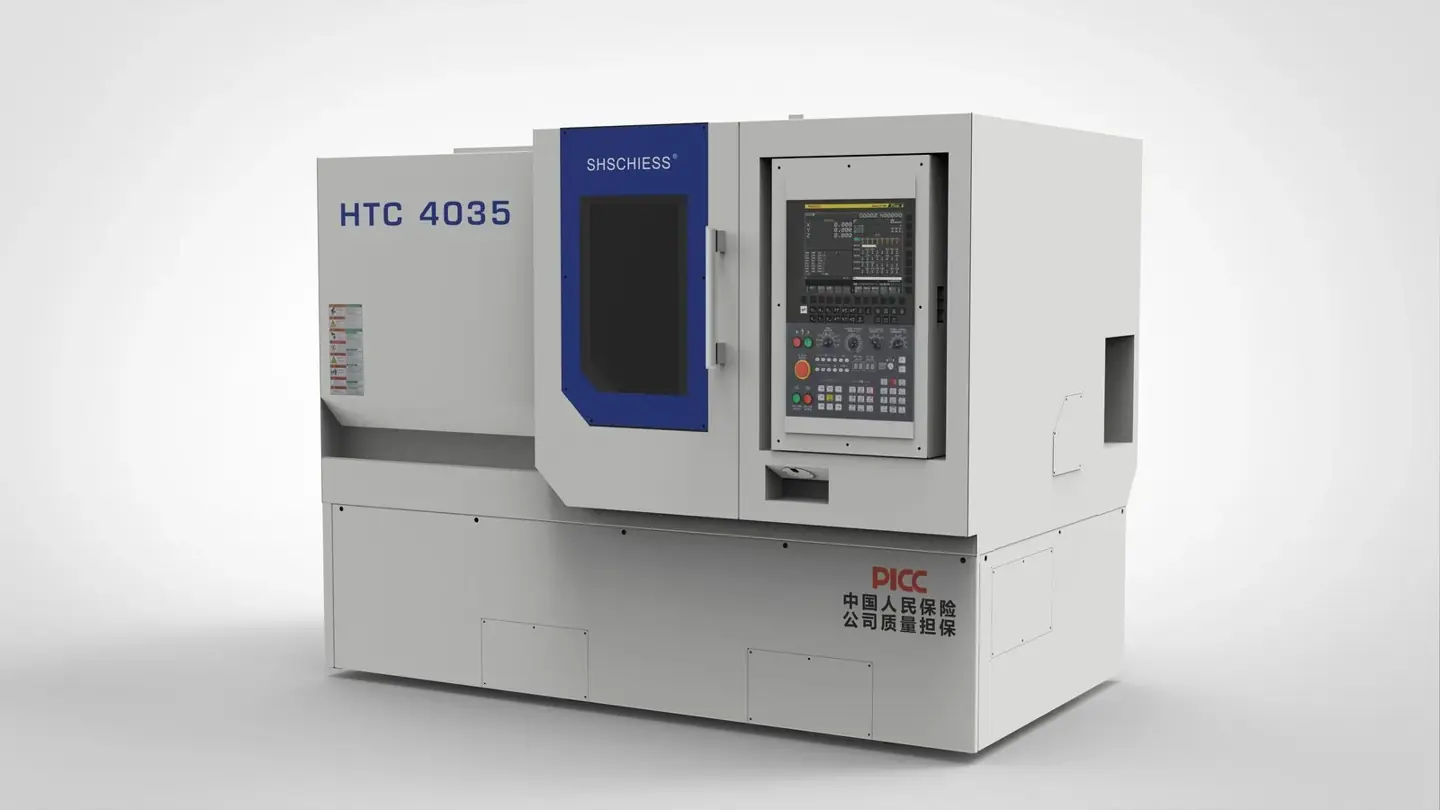

HTC4035 — representative series photograph

HTC · T2 · T4

HTC4035

Compact turning for short shafts and disc components, with a 6-inch chuck and an eight-station turret.

Swing over bedØ400 mm
Maximum cutting length300 mm

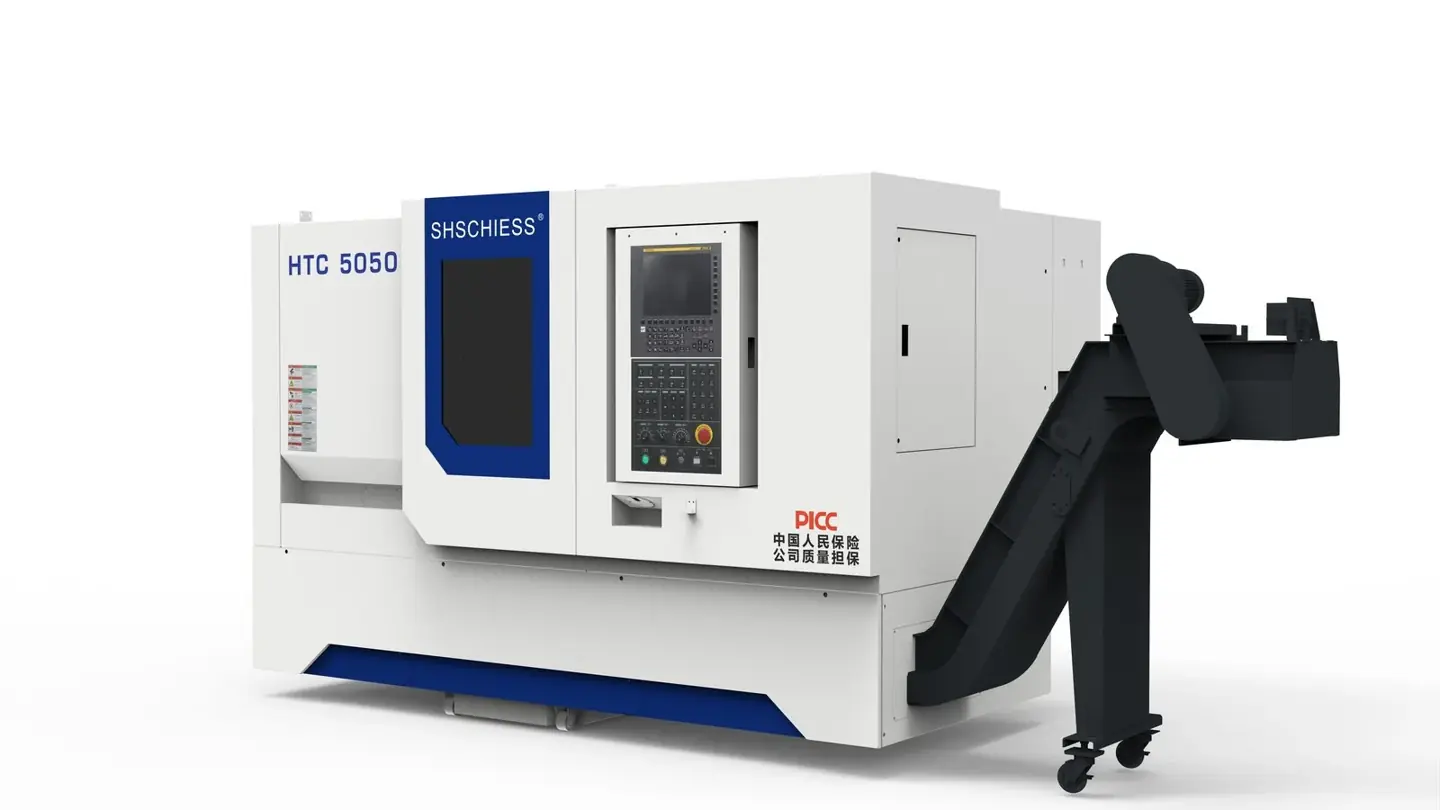

HTC5050 — representative series photograph

HTC · T2 · T4

HTC5050

A versatile slant-bed turning platform for shaft and disc production, with a hydraulic chuck and a servo turret.

Swing over bed500 mm
Maximum cutting length500 mm
T4/500 — representative series photograph

HTC · T2 · T4

T4/500

FANUC-controlled turning with a 12-station turret, an A2-8 spindle and a 500 mm cutting length.

Swing over bedØ720 mm
Maximum turning diameterØ630 mm
T4/1000 — representative series photograph

HTC · T2 · T4

T4/1000

FANUC-controlled turning with a 12-station turret, an A2-8 spindle and a 1000 mm cutting length.

Swing over bedØ720 mm
Maximum turning diameterØ630 mm
T4/1500 — representative series photograph

HTC · T2 · T4

T4/1500

FANUC-controlled turning with a 12-station turret, an A2-8 spindle and a 1500 mm cutting length.

Swing over bedØ720 mm
Maximum turning diameterØ630 mm
T2/500 — representative series photograph

HTC · T2 · T4

T2/500

A full-function CNC lathe with GSK control, an eight-station turret and hydraulic tailstock for supported shaft machining.

Swing over bedØ560 mm
Maximum cutting length500 mm
T2/1000 — representative series photograph

HTC · T2 · T4

T2/1000

A full-function CNC lathe with GSK control, an eight-station turret and hydraulic tailstock for supported shaft machining.

Swing over bedØ560 mm
Maximum cutting length1000 mm
CAK40/65 — representative series photograph

CAK SERIES

CAK40/65

A flat-bed CNC lathe for general-purpose turning. Select the spindle, workholding and bed length around your component drawing.

Swing over bedØ400 mm
Swing over cross slideØ180 mm
CAK50/100 — representative series photograph

CAK SERIES

CAK50/100

A flat-bed CNC lathe for general-purpose turning. Select the spindle, workholding and bed length around your component drawing.

Swing over bed500 mm
Maximum cutting length850 mm
CAK63/285 — representative series photograph

CAK SERIES

CAK63/285

A flat-bed CNC lathe for general-purpose turning. Select the spindle, workholding and bed length around your component drawing.

Swing over bed630 mm
Maximum cutting length2850 mm
CAK80/150 — representative series photograph

CAK SERIES

CAK80/150

A flat-bed CNC lathe for general-purpose turning. Select the spindle, workholding and bed length around your component drawing.

Swing over bedØ800 mm
Distance between centres1500 mm
V4C — representative series photograph

V SERIES

V4C

Vertical turning for disc-shaped components. The upright spindle supports convenient loading of heavy workpieces.

Swing over bed650 mm
Maximum cutting height500 mm
V6C — representative series photograph

V SERIES

V6C

Vertical turning for disc-shaped components. The upright spindle supports convenient loading of heavy workpieces.

Swing over bed860 mm
Maximum cutting height700 mm
V6i — representative series photograph

V SERIES

V6i

A V-series vertical turning configuration for larger disc and ring components. Review tooling clearance and load with the application team.

Swing over bed800 mm
Maximum turning diameter600 mm
V6S — representative series photograph

V SERIES

V6S

A V-series vertical turning configuration for larger disc and ring components. Review tooling clearance and load with the application team.

Swing over bed1000 mm
Maximum turning diameter900 mm
V-850 — representative series photograph

V-850 — V-1580

V-850

The V-850 combines 800 × 500 × 500 mm X/Y/Z travel with a 1000 × 500 mm table for milling, drilling and pocketing. Review workpiece clearance and spindle options with our team.

X-axis travel800 mm
Y-axis travel500 mm
V-855 — representative series photograph

V-850 — V-1580

V-855

The V-855 combines 800 × 550 × 550 mm X/Y/Z travel with a 1000 × 550 mm table for milling, drilling and pocketing. Review workpiece clearance and spindle options with our team.

X-axis travel800 mm
Y-axis travel550 mm
V-1160 — representative series photograph

V-850 — V-1580

V-1160

The V-1160 combines 1100 × 600 × 600 mm X/Y/Z travel with a 1200 × 600 mm table for milling, drilling and pocketing. Review workpiece clearance and spindle options with our team.

X-axis travel1100 mm
Y-axis travel600 mm
V-1270 — representative series photograph

V-850 — V-1580

V-1270

The V-1270 combines 1200 × 700 × 700 mm X/Y/Z travel with a 1300 × 700 mm table for milling, drilling and pocketing. Review workpiece clearance and spindle options with our team.

X-axis travel1200 mm
Y-axis travel700 mm
V-1370 — representative series photograph

V-850 — V-1580

V-1370

The V-1370 combines 1300 × 700 × 700 mm X/Y/Z travel with a 1400 × 700 mm table for milling, drilling and pocketing. Review workpiece clearance and spindle options with our team.

X-axis travel1300 mm
Y-axis travel700 mm
V-1580 — representative series photograph

V-850 — V-1580

V-1580

The V-1580 combines 1500 × 800 × 750 mm X/Y/Z travel with a 1700 × 800 mm table for milling, drilling and pocketing. Review workpiece clearance and spindle options with our team.

X-axis travel1500 mm
Y-axis travel800 mm

SELECTION ENGINEERING

Choose around the component.

01

Turn rotational components

Horizontal and flat-bed lathes address shaft and disc work. Vertical turning provides a different workholding arrangement for upright rotational components. Compare finished-part capacity and clamping requirements.

02

Mill faces, pockets and holes

The V-series machining centres offer different travel and table sizes. Check the full tool-and-fixture assembly, spindle package and inspection requirements when comparing models.

03

Bring a usable production brief

Include a drawing, material, blank dimensions, annual and batch quantity, required operations and acceptance targets. These details let the team recommend a configuration rather than only a model name.

PRACTICAL ANSWERS

Machine selection FAQ

Which models are in this range?

HTC4035, HTC5050, T4/500, T4/1000, T4/1500, T2/500, T2/1000, CAK40/65, CAK50/100, CAK63/285, CAK80/150, V4C, V6C, V6i, V6S, V-850, V-855, V-1160, V-1270, V-1370, V-1580. Use each model’s technical table to compare the published reference configuration.

Which dimensions should I send for machine selection?

Horizontal and flat-bed lathes address shaft and disc work. Vertical turning provides a different workholding arrangement for upright rotational components. Compare finished-part capacity and clamping requirements.

Are controllers, tooling and accessories included?

The supplied controller, chuck or fixture, turret or magazine, coolant equipment and installation support must be listed in the quotation. Ask the team to identify standard equipment and separately priced options.

Can you confirm accuracy or cycle time from a catalogue?

A catalogue is a starting point. Provide your drawing, material, tooling assumptions and inspection method. Agree sample machining and measurable acceptance criteria in the technical agreement.

What happens after I shortlist a machine?

Send the model names with your component details through the enquiry form. The team can review capacity, process, configuration, installation requirements and delivery terms before preparing a quotation.
